Lab Setup for IOS Pentesting

April 7, 2021
Lab Setup for IOS Pentesting
Share:

Hi Guys this is an old blog post, but I decided to update it to reflect the most recent M1 macbook and iOS device.

Tools for IOS Testing

MOBSF

Mobile Security Framework (MobSF) is an automated, all-in-one mobile application (Android/iOS/Windows) pen-testing, malware analysis and security assessment framework capable of performing static and dynamic analysis.

How to install MOBSF

git clone https://github.com/MobSF/Mobile-Security-Framework-MobSF.git
cd Mobile-Security-Framework-MobSF

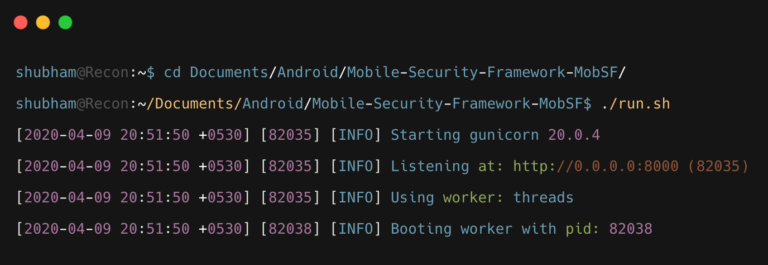

./setup.sh ./run.sh

Blog image

Jailbreaking iPhone

Jailbreaking is the privilege escalation of an Apple device for the purpose of removing software restrictions imposed by Apple on iOS, iPadOS, tvOS and watchOS operating systems. Just like ROOTING in android.

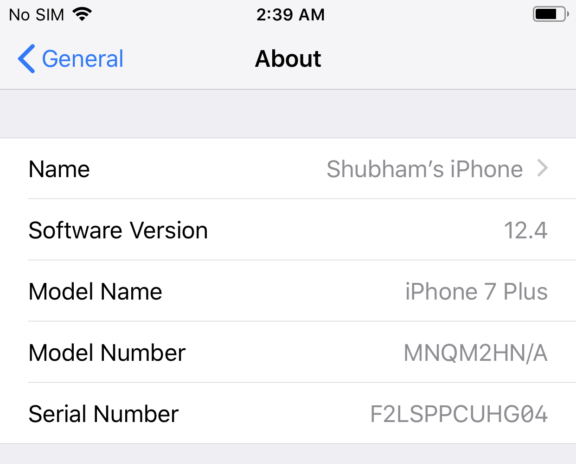

1. Check the IOS version, open settings > general > about.

Blog image

2. Go to https://altstore.io/ Download Altstore application I’m using Macbook so ITunes is not required to install app in mobile if you are using windows make sure you install full version ITunes from the following link: https://support.apple.com/downloads/itunes

3. Connect your iPhone with Macbook via cable and install the Altstore application. You will be needing your iCloud credential. You can create a new one if you don’t want to use your personal one.

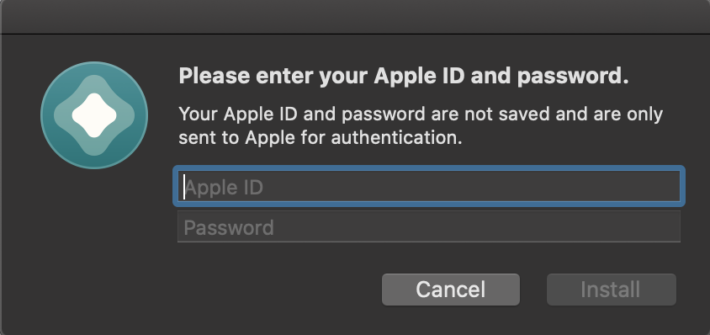

4. Enter your username and Password here

Blog image

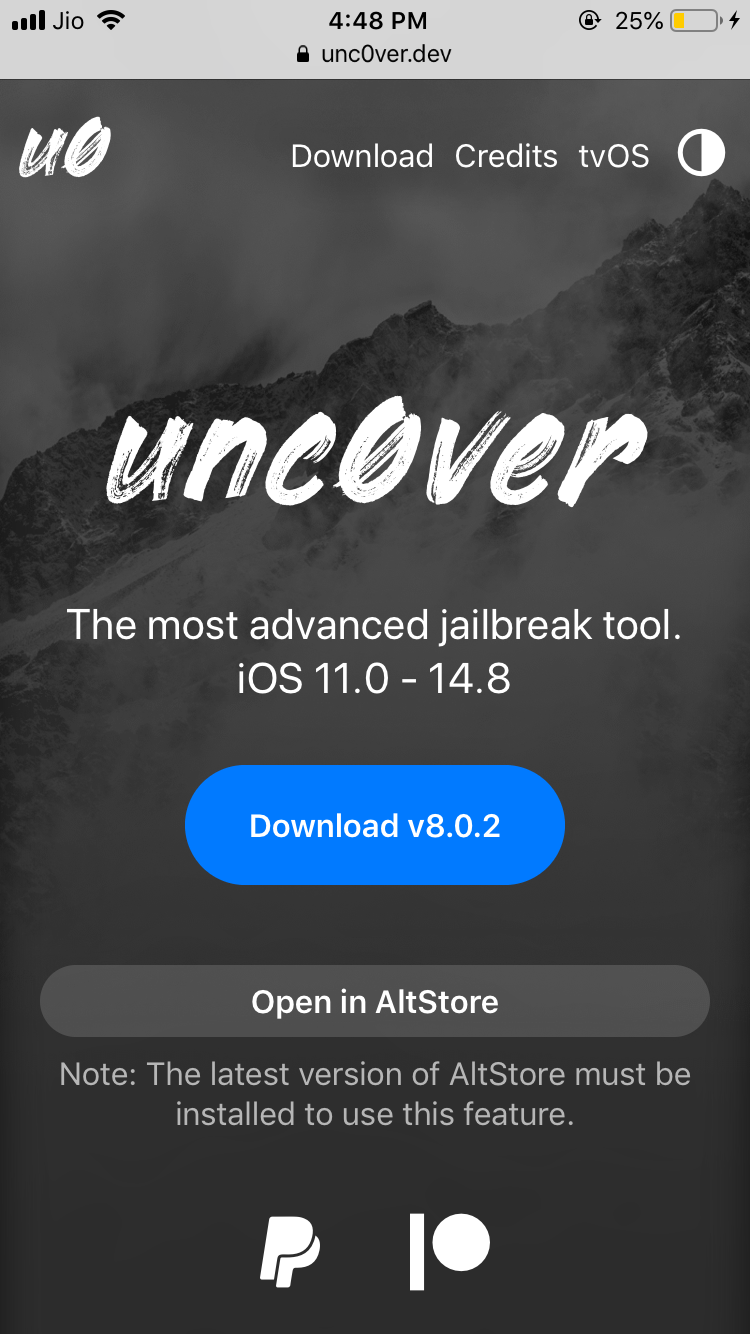

5. After that go to https://unc0ver.dev from your mobile safari browser.

Blog image

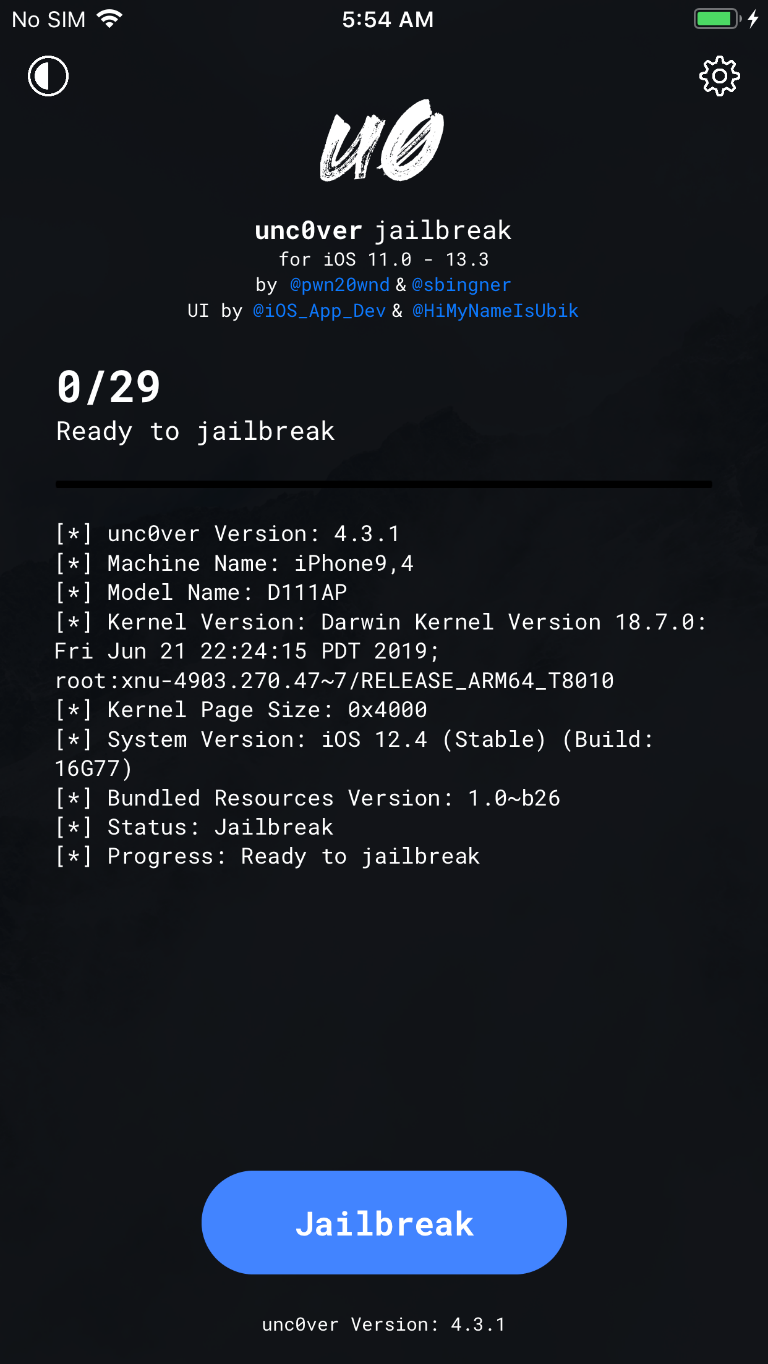

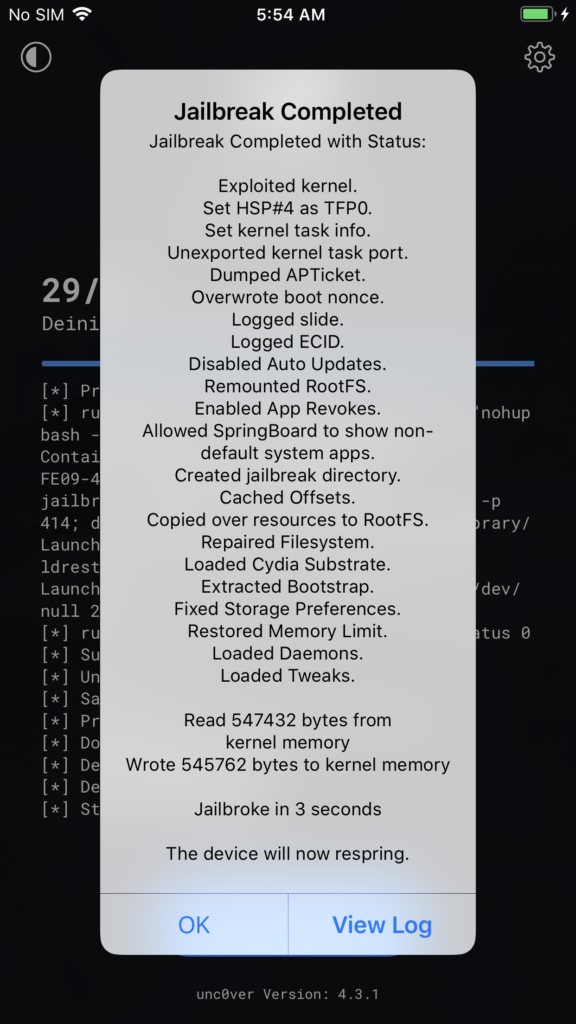

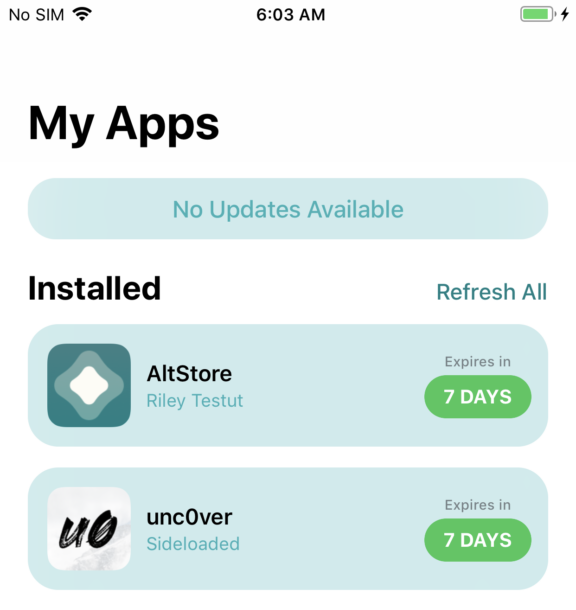

6. Open in AltStore (make sure the mail is open and plugin is install) you can see unc0ver is successfully install now you can open unc0ver application and run the jailbreak.

Blog image

Blog image

Blog image

Install Mterminal from Cydia

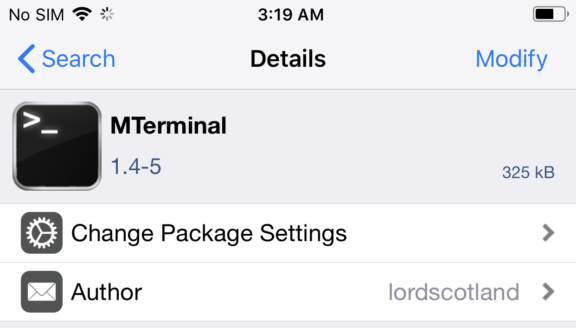

Open Cydia Store and search Mterminal and install it.

Blog image

Blog image

SSH Connection

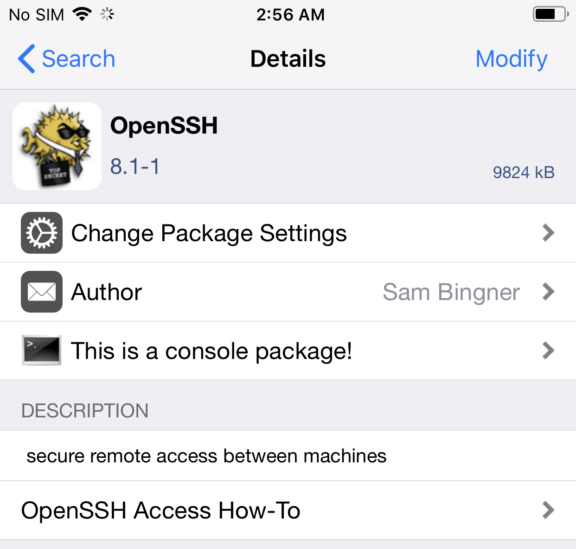

After that you need to install Openssh to get ssh connection of your your iPhone.

You can find your device ip from Settings > Wifi > Connected Wifi name > Click on info.

SSH Default Credentials:

root – alpine
mobile - alpine

Blog image

Jailbreak Detection Bypass

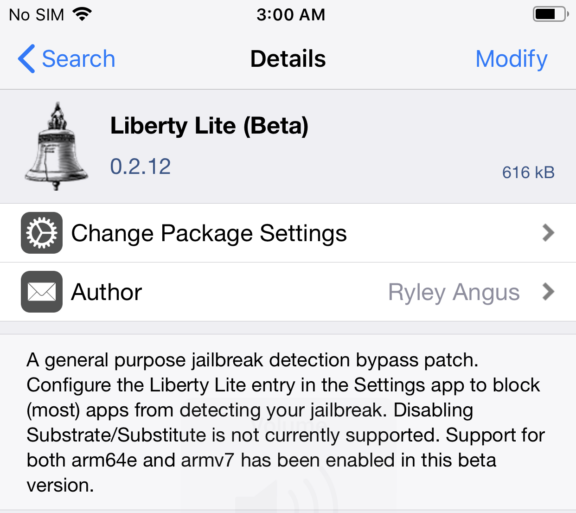

Open Cydia store > Search > liberty Lite. Install it.

Blog image

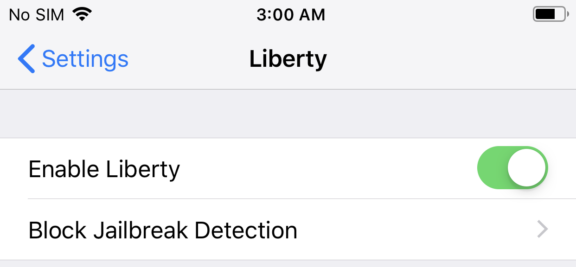

Open LibertyLite settings from Settings > Liberty lite
Here, you can select apps whom you want to bypass Jailbreak Detection.

Blog image

SSL Pinning Bypass

1. Download SSL kill switch2 from https://github.com/nabla-c0d3/ssl-kill-switch2/releases/download/0.14/com.nablac0d3.sslkillswitch2_0.14.deb

2. copy file on mobile via itunes or any method.

3. open Mterminal which we installed before to install Openssh and run.

SU

After that install file which we copied earlier

dpkg -i ssl.deb

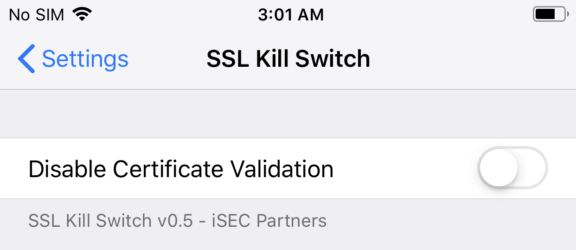

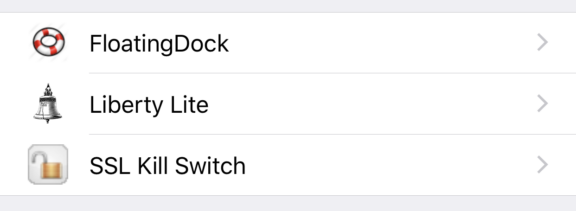

4. SSLKIll successfully installed now you can go to device settings to check the same.

Blog image

5. You can bypass ssl pinning by disabling certificate validation.

Blog image

Installing Frida

Add source in Cydia Store and let it update the resources https://build.frida.re

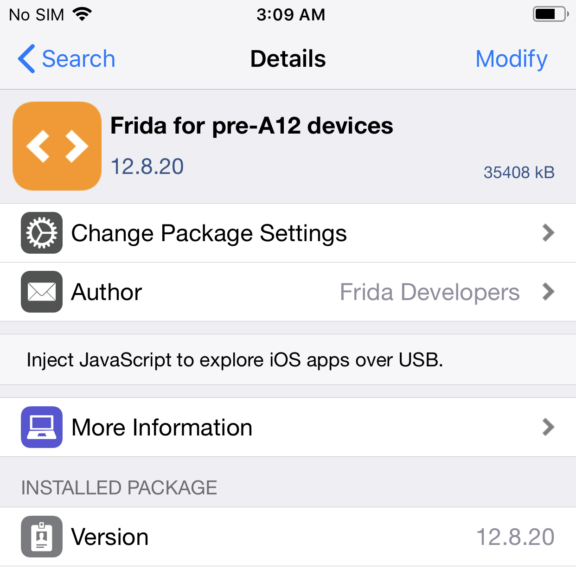

Once done search Frida in search-box and install it.

Blog image

Installing Frida in Computer

Note: Make sure you have installed python-pip

pip install frida-tools

After installing do a small test
Connect mobile to computer via cable and run following command.

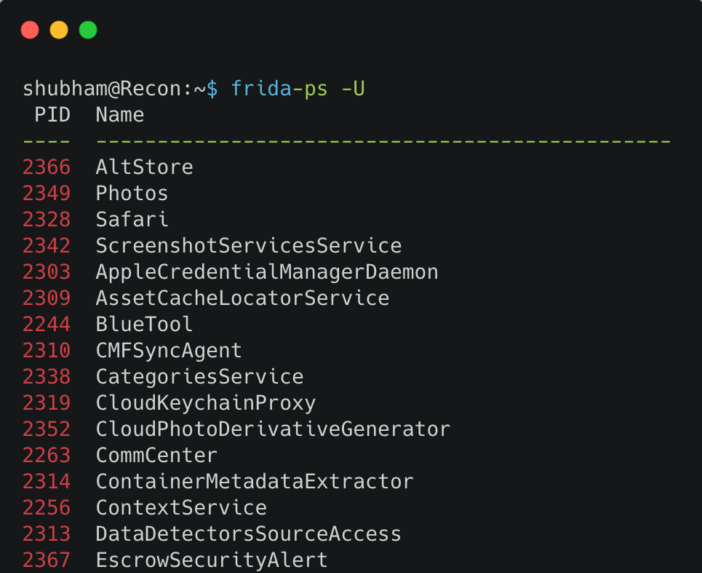

frida-ps -U

Blog image

Installing Objection

Objection is a runtime mobile exploration toolkit, powered by Frida, built to help you assess the security posture of your mobile applications, without needing a jailbreak.

Run following command to install Objection

pip3 install objection

Small test to see we have install everything successfully .

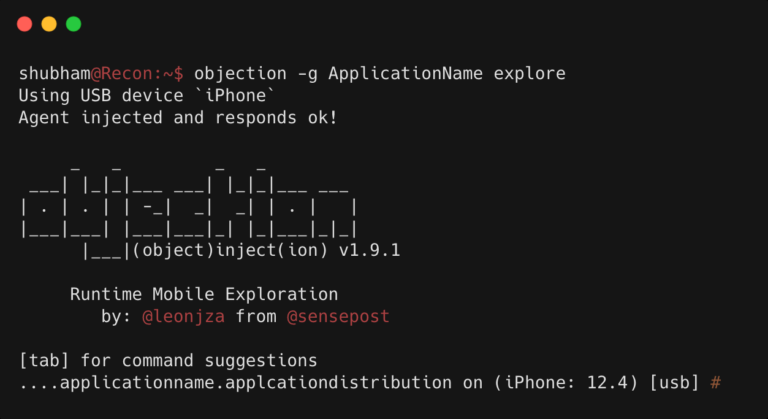

objection -g applicationname explore

Blog image

Extra:

How to install IPA file in iPhone.

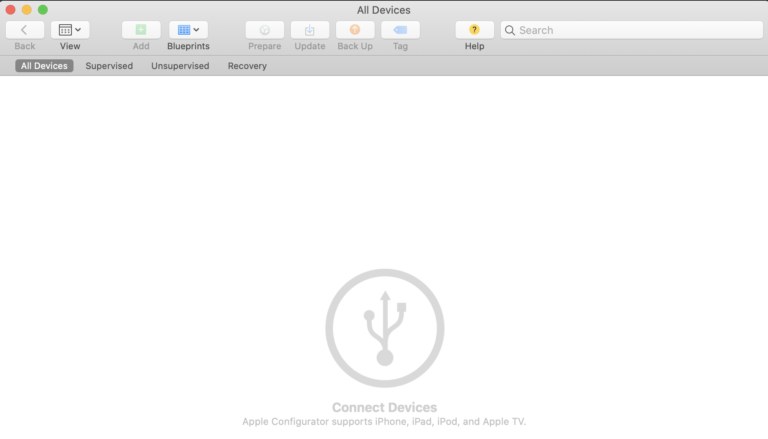

Install Apple configurator from link we provided in tool list and launch it.

Blog image

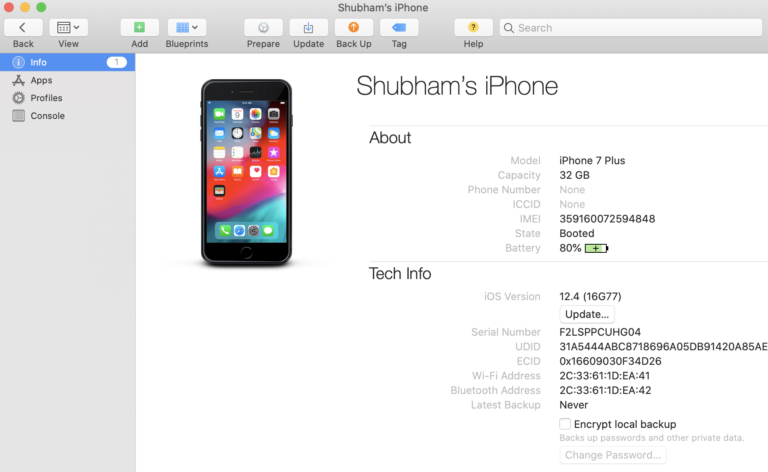

Connect your phone via cable and give access to mobile.

Blog image

Click on add and select Apps

Blog image

After that click on choose from my mac and select IPA file it will be installed on your phone now you are ready to go.
Stay tuned for more updates. 😄
